Tape Edge Sweing Foam Making Machine for Blankets and Sofa Cushion and Mattress

Name: Tape Edge Sweing Foam Making Machine for Blankets and Sofa Cushion and Mattress
Brand: ZHMACH
Price: 3800 USD

Quality Tape Edge Sweing Foam Making Machine for Blankets and Sofa Cushion and Mattress for sale

Brand Name : ZHMACH

Model Number : ZHQG-3A

Certification : CE Certification

Place of Origin : China (mainland)

MOQ : one set

Price : USD 3800-4800 per set

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : two sets per month

Delivery Time : 25 work days

Packaging Details : paper film and plastic

Maximum sewing speed : 3000r / min

Lifting range : 0-200mm

Traveling box control : variable frequency clutch

Type : tape edge machines

Worktable size : 1550 * 20500mm

Walking box speed : 2000-3000 needles / min

Table lifting range : 0-420mm

Thickness of mattress : 50 ~ 700mm

Nose work angle : 35 ° ~ 85 ° (adjustable)

Total power : 7KW

Contact Now

Tape Edge Sweing Foam Making Machine for Blankets and Sofa Cushion and Mattress

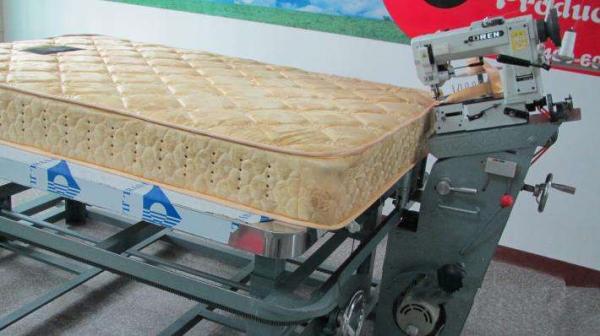

The machine is mainly used for mattress to complete the mattress fabric and the edge of the wall between the cloth seam work, but also for other mattresses, blankets, sofa cushion, sleeping bag sewing. The head can be automatically raised and lowered to accommodate sewing various mattresses of various heights. Driving box and the head drive using variable frequency clutch motor, corner automatic deceleration easy to control, the nose with a slider thread, shuttleless hook hook line, constitute a chain stitch. Upper and lower shaft with synchronous toothed belt drive; lever type needle pitch adjustment mechanism. The use of integrated feeding, needle feeding and alternating pressure on the foot feeding, rod-type lifting feet, and high-pressure foot travel, high-pressure foot to enhance the gap and the larger length of the track, with push-pull stainless steel professional edge fixture; can easily handle difficult to send Of the material and multi-layer thick leather. Automatic sensing device, frequency clutch, to prevent the load caused by the machine damage, so that sewing more smooth and convenient operation. Push plate height adjustable, man-machine performance more reasonable.

Maximum sewing speed	3000r / min
Nose work angle	35 ° ~ 85 ° (adjustable)
Table lifting range	0-420mm
Lifting range	0-200mm
Thickness of mattress	50 ~ 700mm
Walking box speed	2000-3000 needles / min
Traveling box control	variable frequency clutch
Total power	7KW
Worktable size	1550 * 20500mm
